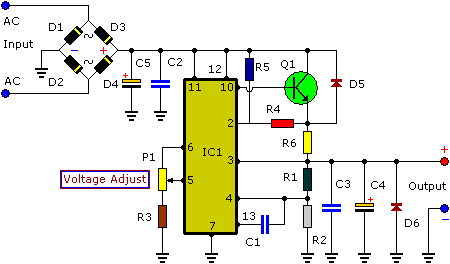

3-30V 3A Adjustable Regulated DC Power Supply

3-30V 3A Adjustable Regulated DC Power Supply
3-30V 3A Adjustable Regulated DC Power Supply

Parts list:

R1 = 8.2K
R2 = 2.2K
R3 = 680R
R4 = 1K
R5 = 82K
R6 = 0.18R/5W
C1 = 470p
C2 = 100nF-63V
C3 = 100nF-63V
C4 = 100uF-63V
C5 = 10KuF-60V
D1-D6 = 6.6A
Q1 = MJ3001 (Darligton)
IC1 = UA723D

  • Overload protected
  • Sshort-circuit stable
  • Output current: max. 3A
  • Output ripple voltage: 0.5mV
  • Output voltage: adjustable from 3 to 30V, stabilized
  • Input voltage: 9 to 30V AC (depending on the desired output voltage)
Assembling into a housing:
  • Depending on the transformer used, one may chose one of two housings
  • If a metal housing is used, it must be earthed for security purposes.
  • Make sure the cooling body does not touch the housing. This might cause a short circuit.
  • When mounting a toroidal transformer, it must be seen to that the fixation bolt does not touch the cover. This might cause the burning of the transformer
  • If the circuit is to be integrated into another housing, it must be provided with ventilation holes (one may make these holes oneself), necessary for the release of the heat developed.
Notes :
  1. Connect a voltage meter to the points ‘GND’ and ‘+OUT’ and adjust ‘RV1’ until the desired output voltage is reached.
  2. Apply some thermo-conducting pasta to the bottom side of the transistor and mount it on the heatsink.
  3. If you need 3-8 volt then R2 will be 5.6K
  4. If you need more than 8 volts then the R2 will be 2.2K
  5. Suitable transformer 30vAC at 120VA
